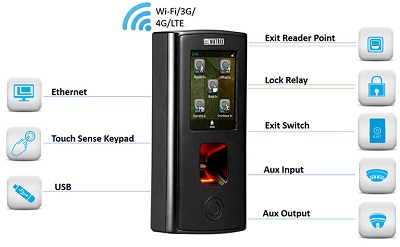

FINGER BASED CONTROLLER VEGA
Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.
Technical Details
| Variants | COSEC VEGA FAX | COSEC VEGA FAXQ |
|---|---|---|
| Credential Support | Fingerprint , RFID Card and PIN | Fingerprint, RFID Card and PIN |
| Fingerprint Sensor | Optical | Optical |
| Templates Capacity | 9600 (1: N mode), and 1,00,000 (1:1 mode) | 9600 (1: N mode), and 1,00,000 (1:1 mode) |
| Templates Per User | Up to Ten | Up to Ten |
| Cards Per User | Up to Two | Up to Two |
| Type of Card | EM Prox,Mifare, and HID iCLASS (Card Module is required) | EM Prox, Mifare, and HID iCLASS (Card Module is required) |
| User Capacity | 50,000 | 50,000 |
| Display | 3.5" TFT Display with Capacitive Touch Panel | 3.5" TFT Display with Capacitive Touch Panel |
| Communication Port | Ethernet, Wi-Fi, Mobile Broadband (3G/4G Using USB Dongle) | Ethernet, Wi-Fi, Mobile Broadband (3G/4G Using USB Dongle) |
| Built-in PoE | Yes | Yes |
| Built-in Wi-Fi | Yes | Yes |
| USB | One USB Port (for Data Transfer and Mobile Broadband) | One USB Port (for Data Transfer and Mobile Broadband) |
| Event Buffer | 5,00,000 | 5,00,000 |
| Exit Switch Port | Yes | Yes |
| Exit Reader | Yes | Yes |
| Reader Interface Types | RS-232 and Wiegand | RS-232 and Wiegand |
| Reader Power Output | Internal 12VDC @ 0.5A or External | Internal 12VDC @ 0.5A or External |
| Door Status Sense | Programmable NO, NC, Supervised | Programmable NO, NC, Supervised |
| Door Lock Relay | Relay SPDT, Form C, 1A @ 30VDC | Relay SPDT, Form C, 1A @ 30VDC |
| Door Lock Power | Internal 12VDC @ 0.5A or External | Internal 12VDC @ 0.5A or External |
| Aux-In | Programmable NO, NC, Supervised | Programmable NO, NC, Supervised |
| Aux-Out | Relay SPDT, Form C, 1A @ 30VDC | Relay SPDT, Form C, 1A @ 30VDC |
| Tamper Detection | Yes | Yes |
| Input Power | 12VDC @ 2A | 12VDC @ 2A |
| Operating Temperature | 0° C to +50°C (32°F to 122°F), | 0° C to +50°C (32°F to 122°F), |
| Humidity | 5% to 95% RH Non-condensing | 5% to 95% RH Non-condensing |
| IP65 | Verified | Verified |
| STQC Certified | No | Verified |
| Certification | CE,FCC PART15B(VOC),BIS,ROHS | CE,FCC PART15B(VOC),BIS,ROHS |
| Dimensions (mm) | 91X186X38 | 91X186X38 |
| Weight (kgs) | 0.54 | 0.54 |
